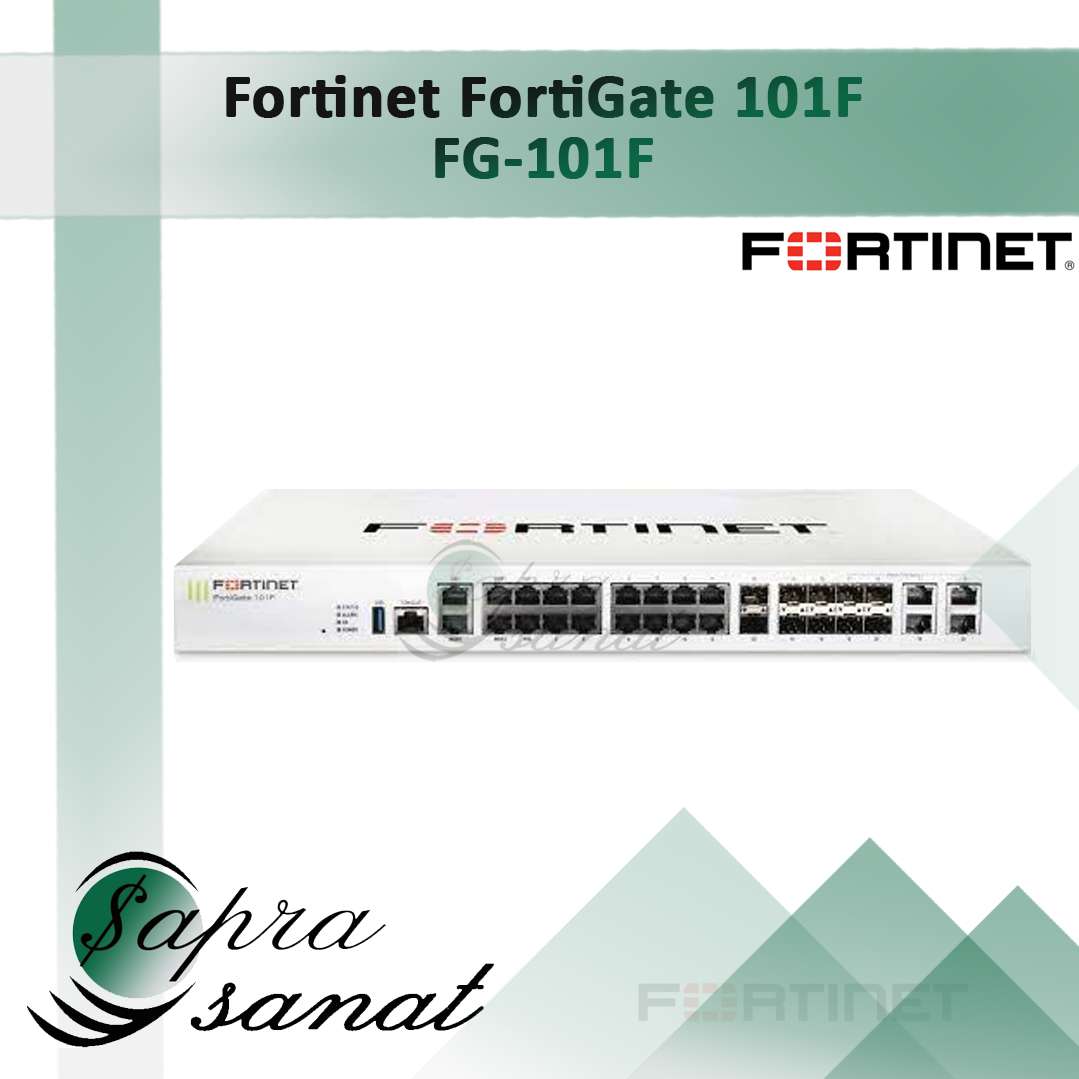

| FortiGate 101F |
|---|
| GE RJ45 WAN Ports | 2 |
| GE SFP Slots | 4 |
| 10GE SFP FortiLink Slots | 2 |
| GE RJ45 Ports | 12 |
| GE RJ45 or SFP Shared Ports | 4 |
| GE RJ45 Management/HA/DMZ Ports | 1/2/1 |
| GE RJ45 PoE/ Ports | – |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Internal Storage | 1x480GB SSD |
| IPS Throughput | 2.6Gbps |
| NGFW Throughput | 1.6Gbps |
| Threat Protection Throughput | 1Gbps |
| Firewall Throughput (1518/512/64byte UDP packets) | 20/18/10Gbps |
| Firewall Latency (64byte UDP packets) | 4.97μs |
| Firewall Throughput (Packets Per Second) | 15Mpps |
| Concurrent Sessions (TCP) | 1.5Million |
| New Sessions/Second (TCP) | 56,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512byte packets) | 11.5Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 |
| SSL-VPN Throughput | 1Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 1Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 1,800 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 135,000 |
| Application Control Throughput (HTTP 64K) | 2.2Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 15Gbps |
| Virtual Domains (Default / Maximum) | 10/10 |
| Maximum Number of Switches Supported | 32 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 128/64 |
| Maximum Number of FortiTokens | 5,000 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Height xWidth x Length (inches) | 1.73x17x10 |
| Height x Width x Length (mm) | 44x432x254 |
| Weight | 7.56lbs(3.43kg) |
| Form Factor | Rack Mount, 1RU |
| Power Required | 100–240V AC, 50–60Hz |
| Maximum Current | 100V / 1A, 240V / 0.5A |
| Power Consumption (Average / Maximum) | 35.3W/39.1W |
| Heat Dissipation | 121.13BTU/hr |
| Operating Temperature | 32–104°F(0–40°C) |
| Storage Temperature | -31–158°F(-35–70°C) |
| Humidity | 10–90%non-condensing |
| noise Level | 40.4dBA |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
