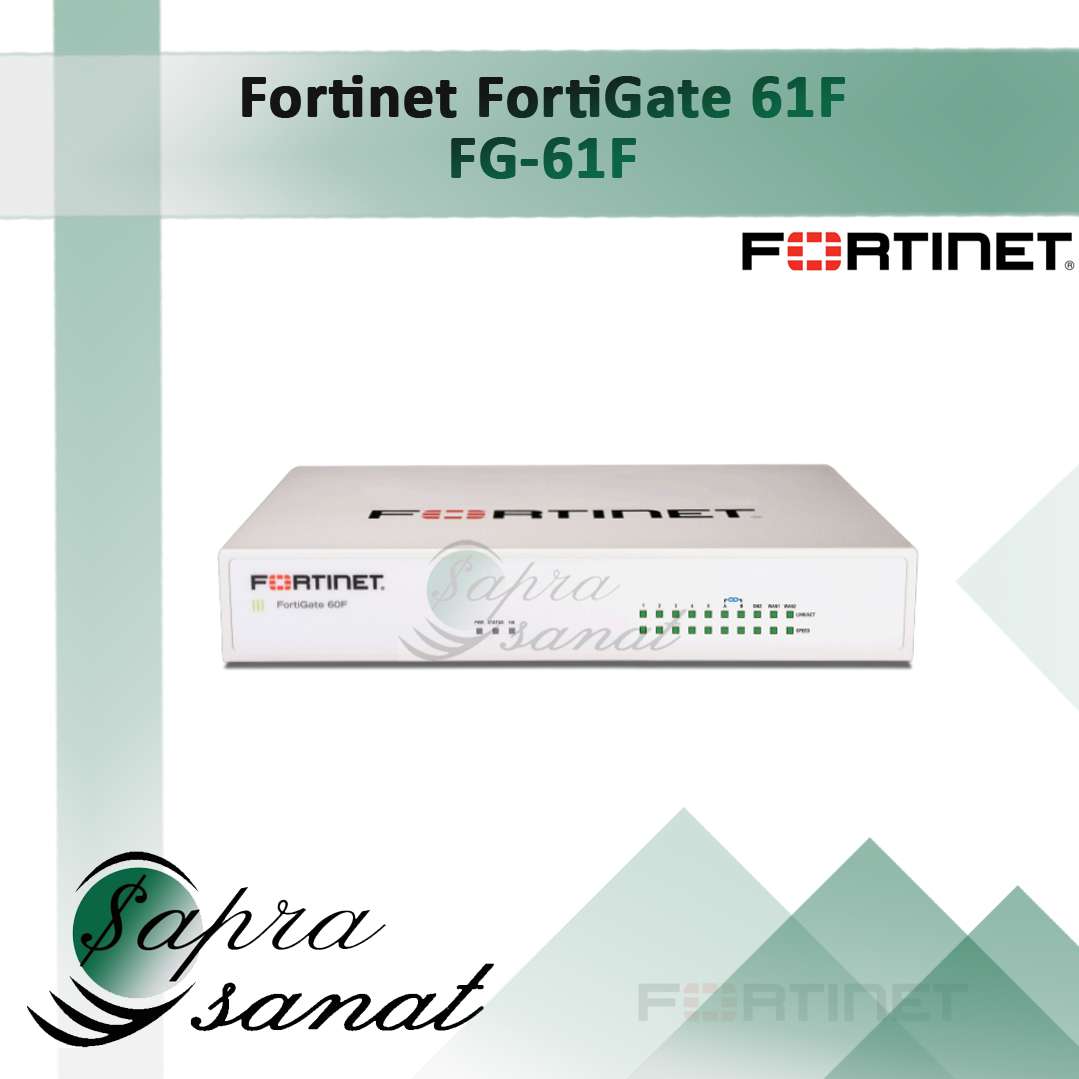

فایروال FortiGate 61F (FG-61F) – فایروال فورتی گیت 61F
تماس بگیرید
توضیح کوتاه
فایروال FortiGate 61F فورتی گیت 61F
| FortiGate 61F | ||
|---|---|---|
Hardware Specifications |
||
| GE RJ45 WAN / DMZ Ports | 2/1 | |
| GE RJ45 Internal Ports | 5 | |
| GE RJ45 FortiLink Ports | 2 | |
| GE RJ45 PoE/ Ports | – | |
| Wireless Interface | – | |
| USB Ports | 1 | |
| Console (RJ45) | 1 | |
| Internal Storage | 1x128GB SSD | |
System Performance — Enterprise Traffic Mix |
||
| IPS Throughput | 1.4Gbps | |
| NGFW Throughput | 1Gbps | |
| Threat Protection Throughput | 700Mbps | |
System Performance |
||
| Firewall Throughput (1518/512/64byte UDP packets) | 10/10/6Gbps | |
| Firewall Latency (64byte UDP packets) | 4μs | |
| Firewall Throughput (Packets Per Second) | 9Mpps | |
| Concurrent Sessions (TCP) | 700,000 | |
| New Sessions/Second (TCP) | 35,000 | |
| Firewall Policies | 5,000 | |
| IPsec VPN Throughput (512byte packets) | 6.5Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |
| Client-to-Gateway IPsec VPN Tunnels | 500 | |
| SSL-VPN Throughput | 900Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 | |
| SSL Inspection Throughput | 750Mbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 400 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 | |
| Application Control Throughput | 1.8Gbps | |
| CAPWAP Throughput (HTTP 64K) | 15Gbps | |
| NGFW Throughput | 250Mbps | |
| Threat Protection Throughput | 180Mbps | |
| Virtual Domains (Default / Maximum) | 10/10 | |
| Maximum Number of FortiSwitches Supported | 16 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 30/10 | |
| Maximum Number of FortiTokens | 500 | |
| Maximum Number of Registered FortiClients | 200 | |
| High Availability Configurations | Active/Active, Active/Passive, Clustering | |
Dimensions |
||
| Height xWidth x Length (inches) | 1.5×8.5×6.3 | |
| Height x Width x Length (mm) | 38x216x160 | |
| Weight | 1.9lbs(0.9kg) | |
| Form Factor | Desktop | |
Operating Environment and Certifications |
||
| Power Required | 100–240V AC, 50–60Hz (External DC Power Adapter, 12 VDC) |
|
| Maximum Current | 115V AC / 0.2A, 230V AC / 0.1A | |
| Power Consumption (Average / Maximum) | 17.2W/18.7W | |
| Heat Dissipation | 63.8BTU/hr | |
| Operating Temperature | 32–104°F(0–40°C) | |
| Storage Temperature | -31–158°F(-35–70°C) | |
| Humidity | 10–90%non-condensing | |
| Noise Level | Fanless 0 dBA | |
| Operating Altitude | Up to 7,400ft (2,250m) | |
| Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN | |
