P52498-B21
Not included as standard
"BCM 5719 1Gb 4p BASE-T OCP Adptr" to be defaulted in the configurator at OCP Slot 2. Customer is allowed to remove and select other cards (PCIe of OCP) from Networking OR InfiniBand OR Smart IO (HW) OR Storage Offload category. Choice of OCP3.0 or stand-up cards for primary networking selection plus additional/optional stand-up networking adapters. Notes: - No embedded networking from motherboard. - In 1 Processor configuration, “CPU1 to OCP2 x8 Enablement Kit” will be selected as default as OCP NIC is pre-selected at OCP Slot 2, to be defaulted in the configurator if 1 Processor is selected. Customer is allowed to remove if OCP NIC is not selected but need to be replaced by a PCIe standup NIC. Meanwhile, the “CPU1 to OCP2 x8 Enablement Kit” will be removed. -“CPU2 to OCP2 x8 Enablement Kit” or “CPU2 to OCP2 x16 Enablement Kit” must be selected if OCP NIC is selected in 2 Processors configuration. “CPU2 to OCP2 x8 Enablement Kit” to be defaulted in the configurator if 2 Processors are selected. User should be allowed to remove “CPU2 to OCP2 x8 Enablement Kit” and should be forced select “CPU2 to OCP2 x16 Enablement Kit” if OCP NIC is selected. Customer is allowed to remove if OCP NIC is not selected but need to be replaced by a PCIe standup NIC. Meanwhile, the “CPU2 to OCP2 x8 Enablement Kit” will be removed
| ویژگی | مقدار |
|---|---|
| Product Number | P52498-B21 |
| Processor family | Not included as standard |
| Network Controller | "BCM 5719 1Gb 4p BASE-T OCP Adptr" to be defaulted in the configurator at OCP Slot 2. Customer is allowed to remove and select other cards (PCIe of OCP) from Networking OR InfiniBand OR Smart IO (HW) OR Storage Offload category. Choice of OCP3.0 or stand-up cards for primary networking selection plus additional/optional stand-up networking adapters. Notes: - No embedded networking from motherboard. - In 1 Processor configuration, “CPU1 to OCP2 x8 Enablement Kit” will be selected as default as OCP NIC is pre-selected at OCP Slot 2, to be defaulted in the configurator if 1 Processor is selected. Customer is allowed to remove if OCP NIC is not selected but need to be replaced by a PCIe standup NIC. Meanwhile, the “CPU1 to OCP2 x8 Enablement Kit” will be removed. -“CPU2 to OCP2 x8 Enablement Kit” or “CPU2 to OCP2 x16 Enablement Kit” must be selected if OCP NIC is selected in 2 Processors configuration. “CPU2 to OCP2 x8 Enablement Kit” to be defaulted in the configurator if 2 Processors are selected. User should be allowed to remove “CPU2 to OCP2 x8 Enablement Kit” and should be forced select “CPU2 to OCP2 x16 Enablement Kit” if OCP NIC is selected. Customer is allowed to remove if OCP NIC is not selected but need to be replaced by a PCIe standup NIC. Meanwhile, the “CPU2 to OCP2 x8 Enablement Kit” will be removed |
| Storage Controller | Choice of HPE ProLiant Gen11 MR and SR PCIe and OCP plug-in Controller |
| Hard Drive | 4LFF – default backplane x1 12G SAS/SATA Low Profile (LP) carrier support |
| Memory type | 32-DIMM slots |
| PCIe slots | PCIe 5.0. One standard primary/butterfly riser: 2 slots as Slot 1 & Slot 2 (1 x16 FH / 1 x16 LP) and 4x8 front NVMe connectors Optional: Slot 3 in 1 x16 FH or LP slot |
| System fan features | Choice of: • 5 Standard Fans for one processor below 185W TDP (shipment available in Q2 2023) • Additional 2 Standard Fans for 2nd Processor, • High Performance Fan Kits and • Closed-loop Liquid Cooling Heat Sink Fan Bundle FIO Kit Notes: If Liquid Cooling HeatSink Fan FIO Bundle Kit is selected, then any Fans (Standard Fan Kit or High Perfformane Fan Kit) cannot be selected |
| Infrastructure management | HPE iLO with Intelligent Provisioning (standard) HPE GreenLake for Compute Ops Management (a 3-year subscription included) Optional: iLO Advanced and OneView |
| Security | TPM2.0 (Trusted Platform Module) embedded Notes: Disabled on shipments to China |
| Form Factor | 1U Rack |
| Video Output | Rear: 1 VGA Optional: • 1 Front Display Port (standalone in 8SFF; USB2.0+ Display Port bundle kit in 4LFF), • 1 Rear Serial Port |
| USB | Front: 1 USB 3.2 Gen1 + iLO service port Rear: 2 USB 3.2 Gen1 Internal: 1 USB 3.2 Gen1 + 1 USB2.0 Optional: 1 Front USB 2.0 |
| Rail Kit | Optional Easy Install rails and CMA Notes: Server does not support shelf mounted rail kits (“L” brackets). |

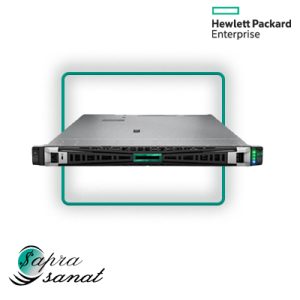

سرور HPE DL360 Gen11 4LFF NC CTO P52498-B21 یکی از پرکاربردترین و پرفروش‌ترین مدل‌های نسل یازدهم از سرورهای اچ پی است که با ساختار ماژولار و قابلیت CTO (Configure To Order) طراحی شده تا کاربران بتوانند سرور را کاملاً متناسب با نیازهای سازمانی خود پیکربندی کنند. این مدل از سری DL360 Gen11، انتخابی عالی برای شرکت‌ها، دیتاسنترها و کسب‌وکارهایی است که به‌دنبال یک سرور قدرتمند، کم‌حجم و قابل توسعه هستند.
اگر به دنبال خرید سرور HP هستید که هم قابلیت ارتقاء بالا داشته باشد و هم در عین حال فضای کمتری در رک اشغال کند، مدل DL360 Gen11 با پارت نامبر P52498-B21 گزینه‌ای ایده‌آل خواهد بود. این سرور هم در بخش محاسباتی و هم در بخش ذخیره‌سازی و مدیریت، تمامی نیازهای زیرساختی شما را پاسخ می‌دهد و در عین حال از قابلیت مقیاس‌پذیری فوق‌العاده‌ای نیز برخوردار است.
برای مشاهده سایر محصولات مرتبط یا دریافت مشاوره در زمینه انتخاب بهترین پیکربندی، می‌توانید به صفحه سرور DL360 Gen11 یا بخش سرور G11 در سایت ما مراجعه کرده و با تیم فروش ما در ارتباط باشید.
سرور HPE P52498-B2 با قابلیت Configure To Order است که سبب می‌شود مشتریان مشخصات سرور را متناسب با نیازهای خود تنظیم کنند.
32-DIMM slots
4LFF
Choice of:
• 5 Standard Fans for one processor below 185W TDP (shipment available in Q2 2023)
• Additional 2 Standard Fans for 2nd Processor,
• High Performance Fan Kits and
• Closed-loop Liquid Cooling Heat Sink Fan Bundle FIO Kit
| CTO Server | HPE DL360 Gen11 4LFF NC CTO Server |
| SKU Number | P52498-B21 |
| TAA SKU* | P52498-B21#GTA |
| HPE Trusted Supply Chain | Optional: P36394-B21 |
| Processor | Not included as standard |
| Drive Cage – included | 4LFF – default backplane x1 12G SAS/SATA Low Profile (LP) carrier support |
| DIMM Slots | 32-DIMM slots |
| DIMM Blanks | DIMM Blanks are required, embedded and shipped as default in all CTO Servers |
| Storage Controller | Choice of HPE ProLiant Gen11 MR and SR PCIe and OCP plug-in Controller. |
| PCIe Slots |
PCIe 5.0. |
| OCP3.0 Slots | PCIe 5.0: 2 slots (1×16/ 1×16) |
| Network Controller | “BCM 5719 1Gb 4p BASE-T OCP Adptr” to be defaulted in the configurator at OCP Slot 2. Customer is allowed to remove and select other cards (PCIe of OCP) from Networking OR InfiniBand OR Smart IO (HW) OR Storage Offload category. Choice of OCP3.0 or stand-up cards for primary networking selection plus additional/optional stand-up networking adapters. Notes: – No embedded networking from motherboard. – In 1 Processor configuration, “CPU1 to OCP2 x8 Enablement Kit” will be selected as default as OCP NIC is pre-selected at OCP Slot 2, to be defaulted in the configurator if 1 Processor is selected. Customer is allowed to remove if OCP NIC is not selected but need to be replaced by a PCIe standup NIC. Meanwhile, the “CPU1 to OCP2 x8 Enablement Kit” will be removed. –“CPU2 to OCP2 x8 Enablement Kit” or “CPU2 to OCP2 x16 Enablement Kit” must be selected if OCP NIC is selected in 2 Processors configuration. “CPU2 to OCP2 x8 Enablement Kit” to be defaulted in the configurator if 2 Processors are selected. User should be allowed to remove “CPU2 to OCP2 x8 Enablement Kit” and should be forced select “CPU2 to OCP2 x16 Enablement Kit” if OCP NIC is selected. Customer is allowed to remove if OCP NIC is not selected but need to be replaced by a PCIe standup NIC. Meanwhile, the “CPU2 to OCP2 x8 Enablement Kit” will be removed |
| Fans | Choice of: • 5 Standard Fans for one processor below 185W TDP (shipment available in Q2 2023) • Additional 2 Standard Fans for 2nd Processor, • High Performance Fan Kits and • Closed-loop Liquid Cooling Heat Sink Fan Bundle FIO Kit Notes: If Liquid Cooling HeatSink Fan FIO Bundle Kit is selected, then any Fans (Standard Fan Kit or High Perfformane Fan Kit) cannot be selected |
| Management | HPE iLO with Intelligent Provisioning (standard) HPE GreenLake for Compute Ops Management (a 3-year subscription included) Optional: iLO Advanced and OneView |
| Video Output | Rear: 1 VGA Optional: • 1 Front Display Port (standalone in 8SFF; USB2.0+ Display Port bundle kit in 4LFF), • 1 Rear Serial Port |
| USB | Front: 1 USB 3.2 Gen1 + iLO service port Rear: 2 USB 3.2 Gen1 Internal: 1 USB 3.2 Gen1 + 1 USB2.0 Optional: 1 Front USB 2.0 |
| Security | TPM2.0 (Trusted Platform Module) embedded Notes: Disabled on shipments to China |
| Rail Kit | Optional Easy Install rails and CMA Notes: Server does not support shelf mounted rail kits (“L” brackets). |
| Form Factor | 1U Rack |
