Fortinet FortiGate 1100E Firewall (FG-1100E)
400,000,000 تومان

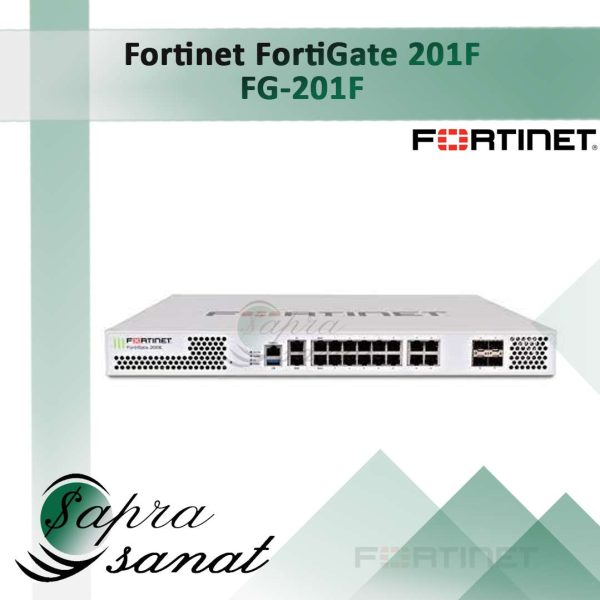

فایروال FortiGate 201F (FG-201F) – فایروال فورتی گیت 201F
تماس بگیرید
توضیح کوتاه
فایروال فورتی گیت 201F (FG-201F)
Interfaces and Modules |
||
|
16 |
GE RJ45 Ports |
|
|
1/1 |
GE RJ45 Management / HA | |
| 8 | GE SFP Slots | |
|
2 |
10 GE SFP FortiLink Slots (default) |
|
|
2 |
10 GE SFP Slots |
|
|
1 |
USB Port |
|
|
1 |
Console Port (RJ45) |
|
|
1x480GB SSD |
Onboard Storage |
|
System Performance — Enterprise Traffic Mix |
||
|
5Gbps |
IPS Throughput |
|
|
3.5Gbps |
NGFW Throughput |
|
|
3Gbps |
Threat Protection Throughput |
|
System Performance and Capacity |
||
|
27/27/11Gbps |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
|
|
4.78μs |
Firewall Latency (64 byte, UDP) |
|
|
16.5Mpps |
Firewall Throughput (Packet per Second) |
|
|
3Milion |
Concurrent Sessions (TCP) |
|
|
280,000 |
New Sessions/Second (TCP) |
|
|
10,000 |
Firewall Policies |
|
|
13Gbps |
IPsec VPN Throughput (512 byte) |
|
|
2,500 |
Gateway-to-Gateway IPsec VPN Tunnels |
|
|
16,000 |
Client-to-Gateway IPsec VPN Tunnels |
|
|
2Gbps |
SSL-VPN Throughput |
|
|
500 |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
|
|
4Gbps |
SSL Inspection Throughput (IPS, avg. HTTPS) |
|
|
3,500 |
SSL Inspection CPS (IPS, avg. HTTPS) |
|
|
300,000 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
|
|
13Gbps |
Application Control Throughput (HTTP 64K) |
|
|
20Gbps |
CAPWAP Throughput (HTTP 64K) |
|
|
10/10 |
Virtual Domains (Default / Maximum) |
|
|
64 |
Maximum Number of FortiSwitches Supported |
|
|
256/128 |
Maximum Number of FortiAPs (Total / Tunnel) |
|
|
5,000 |
Maximum Number of FortiTokens |
|
|
Active, Active-Active, Passive, Clustering |
High Availability Configurations |
|
Dimensions and Power |
||
|
1.73 x 17.01 x 13.47 |
Height x Width x Length (inches) |
|
|
44x 432x 342 |
Height x Width x Length (mm) |
|
|
10.14lbs(4.6kg) |
Weight |
|
|
Ear Mount,1RU |
Form Factor |
|
|
100–240V AC, 50–60Hz |
AC Power Supply |
|
|
104.52W / 121.94W |
Power Consumption (Average / Maximum) |
|
|
100V / 2A, 240V / 1.2A |
Current (Maximum) |
|
|
436.98 BTU/h |
Heat Dissipation |
|
|
Yes |
Redundant Power Supplies |
|
Operating Environment and Certifications |
||
|
32–104°F (0–40°C) |
Operating Temperature |
|
|
-31–158°F (-35–70°C) |
Storage Temperature |
|
|
20–90% non-condensing |
Humidity |
|
|
49.9dBA |
Noise Level |
|
|
Side to Back |
Forced Airflow |
|
|
Up to 7,400ft (2,250m) |
Operating Altitude |
|
|
FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
Compliance |
|
|
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, IPv6 |
Certifications |
|
