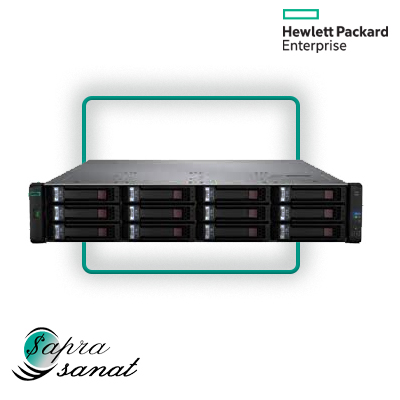

HPE MSA 2050 SAS Dual Controller LFF Storage Q1J28B

HPE MSA 2050 SAS Dual Controller LFF Storage Q1J28B

توضیحات



Block Access Type
2U, SFF or LFF Form Factor
2 Number of controllers per array
1/8 Minimum / Maximum host posts
8/16Gb FC host connectivity
1Gb or 10Gb iSCSI host connectivity
Cache, per array
8TB Max Read cache per array
16GB Data (read/write) cache + system memory per array
562 TB (512 TiB) Pool Capacity (with large pool support)
RAID 1, 5, 6, 10 RAID Levels supported: virtual mode
Enclosures
0-7 enclosures Expansion Drive Enclosures
Supported LFF/SFF array/enclosure mixing
24 SFF/12 LFF Maximum number of drives per array enclosure
24 SFF/12 LFF Maximum number of drives per drive enclosure
6 Gb SAS Drive enclosure inter face type
Drives
192 SFF / 96 LFF Maximum total HDDs per array
192 SFF / 96 LFF Maximum total SSDs per array
76.8 TB SFF / 120TB LFF Max raw capacity per array enclosure
76.8 TB SFF / 120TB LFF Max raw capacity per drive enclosure
614.4TB SFF / 960TB LFF Max raw capacity per array
Drive Capacities
400GB, 800GB, 1.6TB, 3.2TB SFF SSDs (Mixed Use)
400GB, 800GB LFF SSDs (Mixed Use)
15K: 300GB, 600GB, 900GB 10K: 300GB, 600GB, 900GB, 1.2TB, 1.8TB 7.2K: 1.0TB, 2.0TB SFF HDDs
7.2K: 2TB, 4TB, 6TB, 8TB, 10TB LFF HDDs
10K SFF: 1.2TB 7.2K LFF: 4TB SEDs
Software Features
Thin Provisioning, Space Reclamation, Thin Rebuild Thin Technologies
Performance Tier, Standard Tier, Archive Tier Tiering
Snapshots (512), Volume Copy, Remote Snaps Replication
Virtual Tier Affinity Quality of Service
Additional Features
512 Maximum number of volumes
512 Maximum number of snapshots
512 Maximum number of hosts
1024 Maximum number of initiators
Yes Customer self-installable
Yes Customer self-repairable
Yes Customer self-upgradeable
