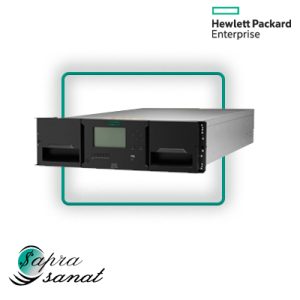

ذخیره ساز تیپ اچ پی StoreEver MSL3040 Scalable Library Base Module Q6Q62B
135,000,000 تومان
توضیح کوتاه
| MSL3040 | ||
| Drive Technology | LTO-9 Ultrium 45000 LTO-8 Ultrium 30750 LTO-7 Ultrium 15000 LTO-6 Ultrium 6250 |
|
| Maximum Number of Drives – Per Module | 3HH (per Module) | |
| – Per fully expanded Library | 21HH (per Library) | |
| Number of Slots – Per Module | 40(Base Module)/40 (Expansion Module) | |
| – Per fully expanded Library | 280(per Library) | |
| Drive Interface | 8Gb Native Fibre Channel 12Gb/sec SAS (LTO-9) 6Gb/sec SAS (LTO-8 and earlier) |
|
| Maximum Capacity | Native – Per Base Module |
720TB (LTO-9, 40 slots) 480TB (LTO-8, 40 slots) 240TB (LTO-7, 40 slots) 100TB (LTO-6, 40 slots) |
| – Per Full Library | 5PB (LTO-9, 280 slots) 3.36PB (LTO-8, 280 slots) 1.68PB (LTO-7, 280 slots) 700TB (LTO-6, 280 slots) |
|
| Compressed (2.5:1) – Per Module |
1.8PB (LTO-9, 40 slots) 1.2PB (LTO-8, 40 slots) 600TB (LTO-7, 40 slots) 250TB (LTO-6, 40 slots) |
|
| – Per Library | 12.6PB (LTO-9, 280 slots) 8.4PB (LTO-8, 280 slots) 4.2PB (LTO-7, 280 slots) 1.75PB (LTO-6, 280 slots) |
|
| Maximum Transfer Rate | Native – Per Module |
3.24TB/hour (with 3 LTO-9 drives) 3.24TB/hour (with 3 LTO-8 drives) 3.24TB/hour (with 3 LTO-7 drives) 1.73TB/hour (with 3 LTO-6 drives) |
| – Per Library | 22.5TB/hr (with 21 LTO-9 drives) 22.5TB/hr (with 21 LTO-8 drives) 22.5TB/hr (with 21 LTO-7 drives) 14TB/hr (with 21 LTO-6 drives) |
|
| Compressed (2.5:1) – 3 HH drives Per Module |
Up to 8.1TB/hr (with 3 LTO-9 drives) Up to 8.1TB/hr (with 3 LTO-8 drives) Up to 8.1TB/hr (with 3 LTO-7 drives) 4.3TB/hr (with 3 LTO-6 drives) |
|
| – 21 HH drives Per Library |
Up to 72.45TB/hr (with 21 LTO-9 drives) Up to 72.45TB/hr (with 21 LTO-8 drives) Up to 72.45TB/hr (with 21 LTO-7 drives) 30.2TB/hr (with 21 LTO-6 drives) |
|
| MSL3040 | ||
| Dimensions | Out-of-Box (HxWxD) | 5.24×18.98×34.27in (13.3×48.2×87.3cm) |
| Shipping (HxWxD) | 12.6×27.09×45.59in (61.5×80.0x120.0cm) | |
| Weight | Out of box | 55.34lbs (25.1kg) |
| Shipping | 68.34lbs (31kg) | |
| Reliability |
MTBF (mean time between failures) | 125,000hours (based on 1M MSBF) |
| MSBF (Mean swaps before failure) | 1,000,000 | |
| Average Cartridge Swap Time (drive to slot, slot to drive) |
N/A | 26seconds (Base Unit) |
| Initialization Time | N/A | 77 to 204 seconds Notes: For LTO-9 see LTO-9 media initialization section |
| Inventory Time | N/A | 50seconds (average) Base unit |
| Connectors | Mini-SAS (MSL SAS model only) LC Optical Fibre (MSL FC models only) (1)RJ-45 Ethernet |
|
| Color Control Panel information (on front panel) |
Monochrome graphic display, 4 inch diagonal, 240 by 128 black dots, 4/3 aspect ratio | |
| Management Interface | 10/100/1000Mbits/second, auto-configuring interface. RJ-45 connection. Https configurable. | |
| Power | 230Watts (max) | |
| Input Requirements | 100-240VAC, 3.7A Max., 50/60Hz | |
| Relative Humidity (non-condensing) |
Operating | 20%to 80% |
| Shipping | 20%to 90% | |
| Temperature Range (wet bulb) |
Operating (LTO-5 to LTO-8) | 50°to 95° F (10° to 35° C) |
| Operating (LTO-9) | 59°to 89° F (15° to 32° C) | |
| Shipping | -22°to 140° F (-30° to 60° C) | |
| Notes: Library operating temperature limits are based on the industry standard tape limit. | ||
| Altitude | Operating | 13,000ft (4000m) |
| Shipping | 35,000ft (10,675m) | |
| Maximum Number of Drives - Per Module |
3HH (per Module) |
|---|---|
| Number of Slots - Per Module |
40(Base Module)/40 (Expansion Module) |
| Drive Interface |
8Gb Native Fibre Channel |
| Dimensions |
5.24×18.98×34.27in |
| Weight |
55.34lbs (25.1kg) |
| Reliability |
MTBF (mean time between failures)-125,000hours (based on 1M MSBF) |
| Average Cartridge Swap Time |
26seconds (Base Unit) |
| Initialization Time |
77 to 204 seconds |
| Inventory Time |
50seconds (average) |
| Connectors |
Mini-SAS (MSL SAS model only) |
| Management Interface |
10/100Mbits/second, auto-configuring interface. RJ-45 connection. Https configurable. |
| Power |
230Watts (max) |
| Input Requirements |
100-240VAC, 3.7A Max., 50/60Hz |
| Relative Humidity |
Operating: 20%to 80% |
| Temperature Range |
Operating (LTO-5 to LTO-8): 50°to 95° F (10° to 35° C) |
| Altitude |
Operating: 13,000ft (4000m) |
