موجود در انبار

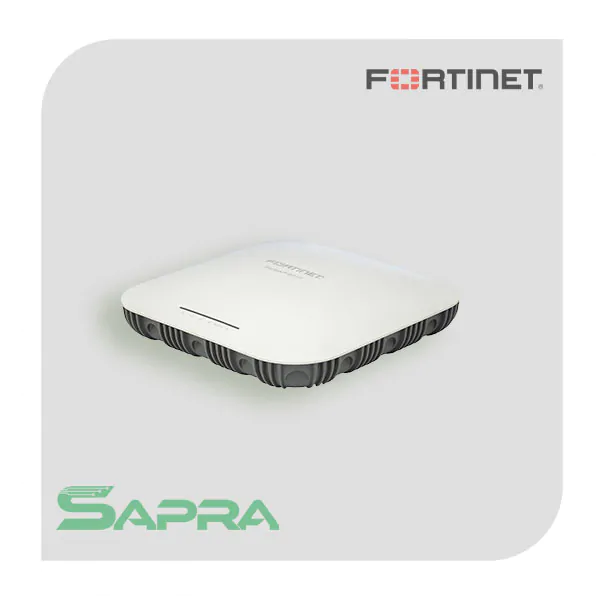

Fortinet FortiAP 831F

حداکثر مصرف برق:

  • 33W

تعداد رادیو:

  • 3 1BLE

توضیحات

FortiAP 831F

رابط:

  • 1×100/1000/2500Base-T RJ45
  • 1×10/100/1000Base-T RJ45
  • 1xType 3.0 USB, 1xRS-232 RJ45 Serial Port

حداکثر مصرف برق:

  • 33W

تعداد رادیو:

  • 3 1BLE

تعداد آنتن:

  • 4 2.4GHz band WiFi 8 5GHz band WiFi I Dual band Scanning 1 2.4GHz band BLE



توضیحات تکمیلی

Hardware Type

Indoor AP

Number of Radios

3 1BLE

Number of Antennas

4 2.4GHz band WiFi 8 5GHz band WiFi I Dual band Scanning 1 2.4GHz band BLE

Antenna Type and Peak Gain

PIFA: 4.0dBi for 2.4GHz band WiFi antennas 6.0dBi for 5.0GHz band WiFi antennas 4.0dBi for dual band Scanning radio antenna 4.5dBi for 2.4GHz band BLE antenna

Frequency Bands (GHz)

2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850

Radio 1 Capabilities

Frequency Band: 2.4GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, QAM64 MIMO chains: 4x4service

Radio 2 Capabilities

Frequency Band: 5.0GHz Channel width: 20/40/80/80 80/160MHz Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 Mimo chains: 8x8service in mode 1or 4×4 4×4 service in mode 2

Radio 3 Capabilities

Frequency bands: 2.4GHz and 5.0GHz MIMO Chains: 1x1Frequency Scanning

Maximum Data Rate

Radio 1: up to 1147.5Mbps Radio 2: up to 4.804Gbps in 8x8MIMO and in 4×4 4x4MIMO modes

Bluetooth Low Energy Radio

Bluetooth scanning and iBeacon advertisement @10dBm max TX power

Interfaces

1×100/1000/2500 Base-T RJ45 1×10/100/1000 Base-T RJ45 1xType 3.0 USB, 1xRS-232 RJ45 Serial Port

Power over Ethernet (PoE)

2×802.3at/bt/30W Passive PoE in (Full function) 1×802.3at PoE in (USB3.1 disabled)

Simultaneous SSIDs

Up to 24

EAP Type(s)

EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAPMSCHAPv2,PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST

User/Device Authentication

WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist

Maximum Tx Power (Conducted)

Radio 1: 2.4GHz 27dBm / 500mW (4chains combined) Radio 2: 5GHz 25.5dBm / 354mW (4chains combined) Radio 3: NA

Kensington Lock

Yes

IEEE Standards

802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz

SSID Types Supported

Local-Bridge, Tunnel, and Mesh

Per Radio Client Capacity

Up to 512 clients per radio (Radio1 and Radio2)

LED Off Mode

Yes

Rogue Scan radio modes

Dedicated

WIPS / WIDS radio modes

Dedicated

Packet Sniffer Mode

Yes

Spectrum Analyzer

Yes

Dimensions

9.05×89.05×2.15inches (230x230x55mm)

Weight

2.25lbs (1.02kg)

Package (shipping) Weight

4.2lbs (1.9kg)

Mounting Options

Ceiling, T-Rail, and Wall

Included Accessories

Mount kit for Ceiling, T-Rail, and Wall

power-supplies

PoE type 802.3af/at/bt Supports dual redundant 802.3af/at DC Power: 12V DC / 3 Amps

Power Consumption (Maximum)

33W

PSE functionality

No

POE Mode Single 5G

DC/2at –> Full Mode ; Radios will be in (8×8, 4×4) & USB Enabled 1at/2af –> High Mode ; Radios will be in (8×8, 4×4) & USB Disabled 1af –> Low Mode ; Radios will be [2×2, 2×2], Tx Power 10 dBm & USB Disabled

POE Mode Dual 5G

DC/2at –> Full Mode ; Radios will be in [4×4, 4×4, 4×4] & USB Enabled 1at/2af –> High Mode ; Radios will be in [4×4, 4×4, 4×4] & USB Disabled 1af –> Low Mode ; Radios will be [2×2, 2×2, 2×2], Tx Power 10 dBm & USB Disabled

Humidity

5 -90%non condensing

Operating / Storage Temperature

32–122°F (0–50°C) / -22–-158°F (-30–70°C)

Directives

Low Voltage Directive • RoHS

UL2043 Plenum Material

No

Mean Time Between Failures

> 10 Years

Surge Protection Built In

Yes

WiFi Alliance Certified

Yes

DFS

CE
